How Do Supercell Tornadoes Form? The Complete Meteorological Guide

Supercell tornado formation occurs when horizontal vorticity, generated by vertical wind shear, is tilted into the vertical by a powerful updraft to create a mesocyclone. As the rear-flank downdraft descends, it concentrates this rotation near the surface through stretching, intensifying wind speeds into a condensed, violent vortex.

Key takeaways

• Strong vertical wind shear creates horizontal rolling air, which a storm's updraft tilts vertically to form a rotating mesocyclone.

• Not all supercells produce tornadoes; the rear-flank downdraft must possess the correct thermodynamic profile to concentrate rotation at ground level.

• Atmospheric instability, often capped by a thermal inversion, fuels the explosive updrafts necessary to sustain a severe supercell thunderstorm.

• In the Southern Hemisphere, the Coriolis Effect dictates that the vast majority of supercells and their resulting tornadoes rotate clockwise.

The Mechanics of Supercell Tornado Formation

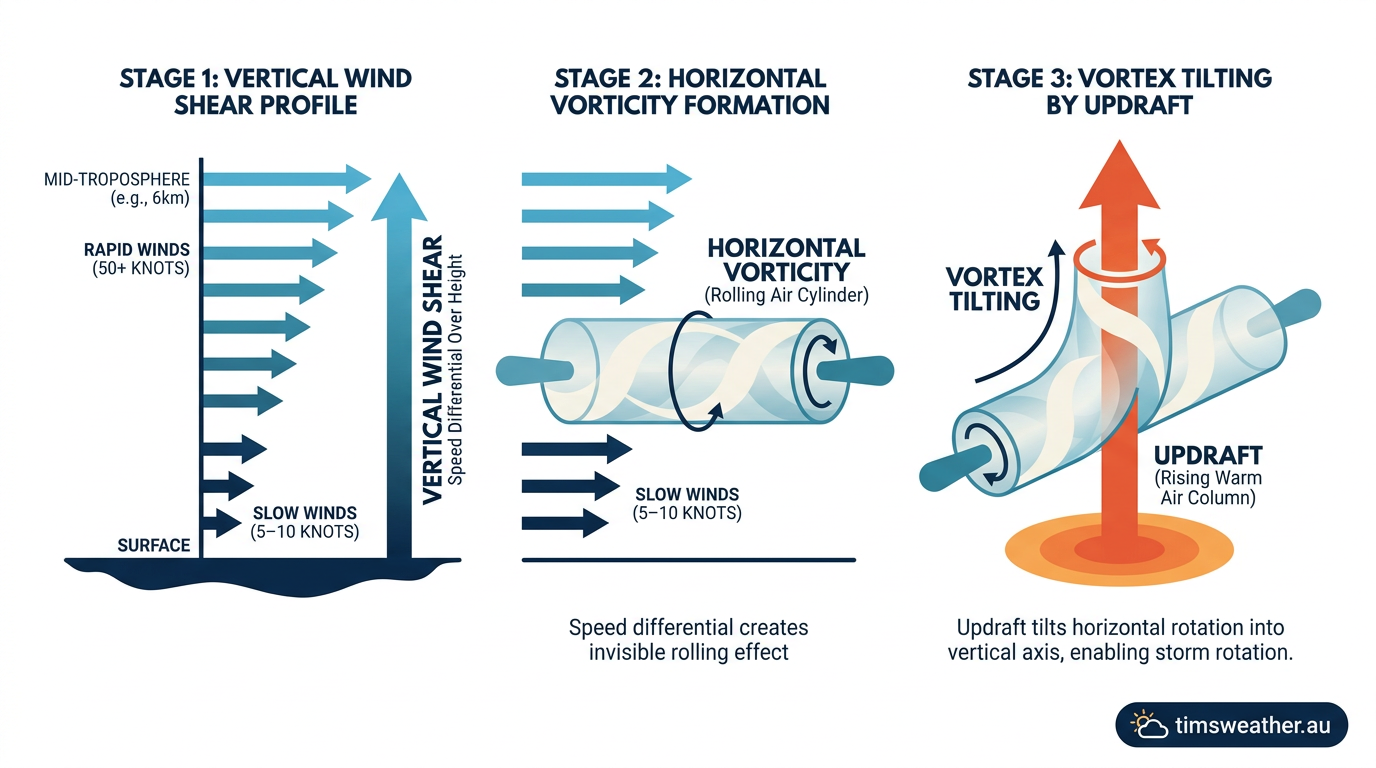

Diagram illustrating how vertical wind shear creates horizontal vorticity that is tilted vertically by an updraft.

To identify the origins of tornadogenesis, meteorologists first look at the broader atmospheric environment long before any clouds appear. The foundation of any rotating storm is vertical wind shear. This term describes a distinct change in wind speed or direction with altitude. When strong winds aloft move rapidly over slower winds near the surface, they create an invisible rolling motion in the lower atmosphere, known as horizontal vorticity. When observing types of severe thunderstorms in Australia, forecasters closely monitor this specific layer of rolling air as the precursor to severe weather.

Research published by NOAA's National Severe Storms Laboratory highlights that this specific wind profile is required for sustained rotation. Typically, forecasting models look for deep-layer wind shear values around 35 to 40 knots from the surface to an altitude of 6 kilometres. Without this mechanical turning of the atmosphere, any developing storm will remain a messy, unorganised rain event rather than developing into a discrete, severe system.

A tornado approaching Elie, Manitoba, Canada on June 2007. By Justin1569 at English Wikipedia, CC BY-SA 3.0, https://commons.wikimedia.org/w/index.php?curid=5943918

What is the main cause of a supercell tornado?

The main cause of a supercell tornado is the interaction between a persistently rotating updraft, called a mesocyclone, and a descending current of air known as the rear-flank downdraft. When atmospheric instability drives the updraft and strong wind shear initiates rotation, the storm can generate a focused vortex. The descending air then squeezes this rotation downward, tightening it until a tornado connects the cloud base to the ground.

How does wind shear influence tornado formation?

Vertical wind shear influences tornado formation by generating horizontal vorticity in the lower atmosphere. Because winds at higher altitudes are blowing faster or in a different direction than winds at the surface, the air between them begins to roll like an invisible cylinder. This rolling air provides the initial spin that a developing thunderstorm will eventually capture and stand upright, transforming a standard storm cell into a rotating supercell.

From Horizontal Spin to Vertical Vortex: The Tilting Process Explained

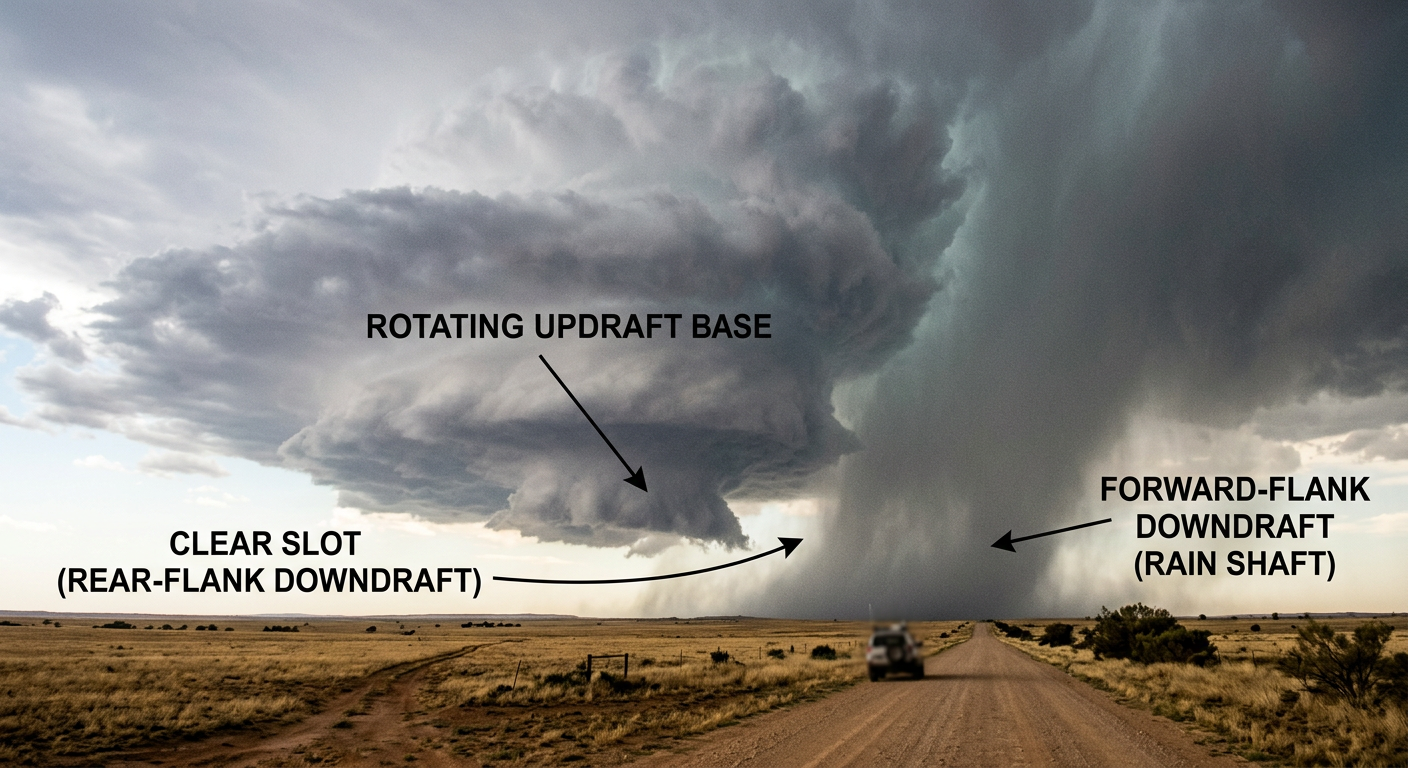

Annotated photograph of a supercell thunderstorm showing the mesocyclone and rear-flank downdraft structure.

If you visualise this horizontal vorticity as a rotating tube of air rolling across the sector, the next step requires an external force to change its orientation. As a powerful updraft develops within a maturing storm, it intercepts this rolling air. The rapidly rising air lifts the centre of the horizontal roll, tilting it completely upright. This tilting of horizontal vorticity provides the vertical spin required for a storm to begin rotating on a massive scale.

As the updraft continues to pull air higher into the troposphere, the stretching of vertical vorticity occurs. Stretching acts much like an ice skater pulling their arms inward during a spin; the column of rotating air narrows, and its rotational velocity increases dramatically. Numerous peer-reviewed studies confirm that this exact tilting and stretching mechanism is the primary engine behind severe storm organisation. How exactly how do thunderstorms form shows that an ordinary cell simply rises, rains out, and collapses under its own weight. With sufficient shear, the heavy precipitation is blown away from the updraft, allowing the storm to persist for hours.

Inside the Storm: Mesocyclones and the Rear-Flank Downdraft

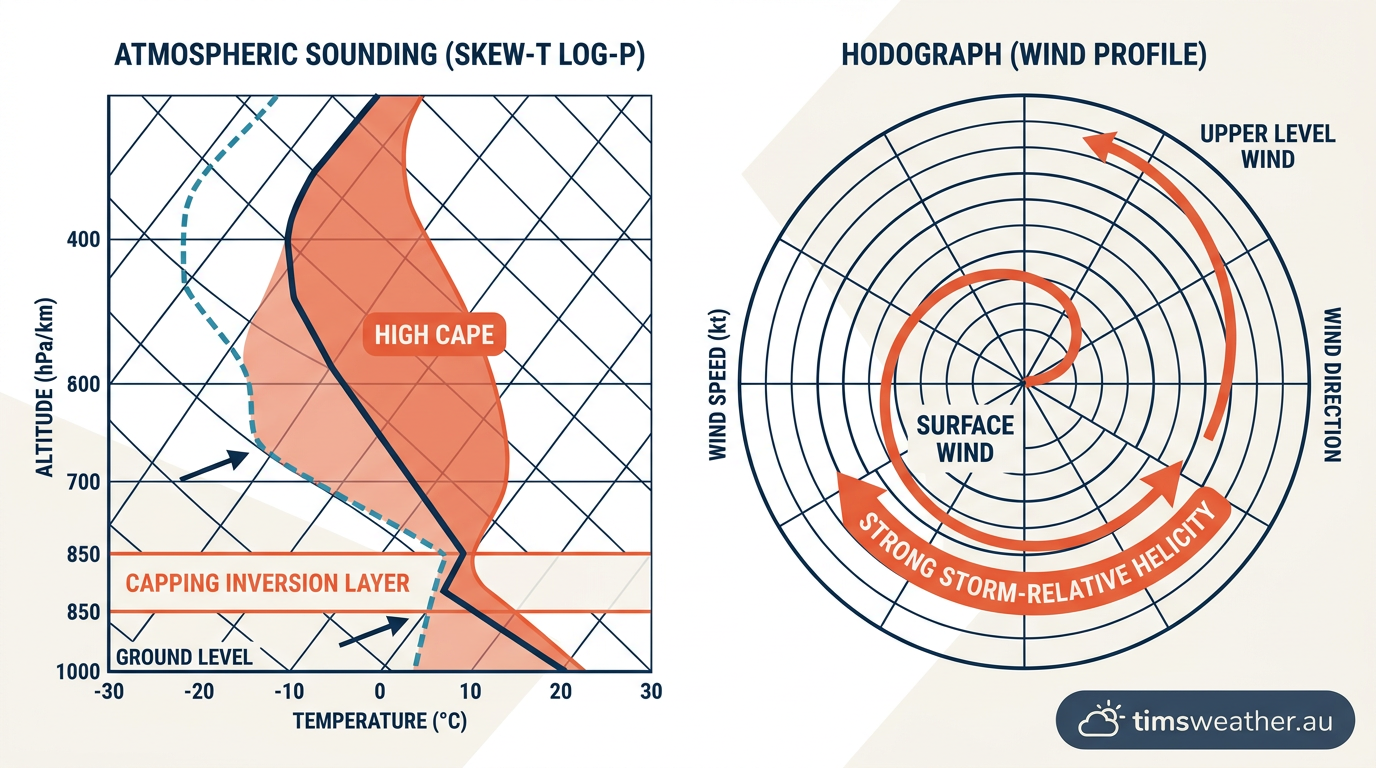

Infographic showing a weather sounding and curved hodograph indicating high CAPE and wind shear for supercell tornado formation.

Once the updraft has successfully tilted the ambient wind shear into the vertical, the storm develops its defining characteristic. This deep, persistently rotating updraft becomes the command centre for the entire supercell, orchestrating both the inflow of warm, moist air and the outflow of rain-cooled downdrafts.

What is a mesocyclone in a supercell?

A mesocyclone is a deep, persistently rotating updraft within a supercell thunderstorm. It usually spans between 3 and 10 kilometres in diameter and is vastly larger than the tornado it may eventually produce. By acting as the storm's central engine, the mesocyclone organises the inflow of warm air and provides the background rotation required to produce severe weather events.

Misocyclone vs Mesocyclone Distinctions

For meteorology students, a technical analysis reveals a vital distinction between a mesocyclone and a misocyclone. While a mesocyclone governs broad, storm-scale rotation across several kilometres, a misocyclone refers to a much smaller vortex, typically less than 4 kilometres wide. Misocyclones are often found along frontal boundaries or deeply embedded within the core of the main updraft. The interaction between the larger mesocyclone circulation and these intense, smaller misocyclone vortices plays a major role in creating the extreme dynamic pressure perturbations that physically pull a developing funnel cloud toward the ground.

The Thermodynamics of the Rear-Flank Downdraft

Storm damage and snapped power poles following a severe tornado event.

The mere existence of a rotating updraft is not enough to spawn a tornado. To answer how mesocyclones produce tornadoes, meteorologists look to the final phase involving the rear-flank downdraft (RFD). This is a region of subsiding air that wraps around the back of the mesocyclone. As outlined in resources like the Encyclopaedia Britannica, the exact interaction between the main updraft and these descending currents dictates whether a funnel actually reaches the surface.

Decades of field data show that the temperature of this descending air is the deciding factor. If the outflow air in the RFD is too cold, it creates a dense cold pool that surges rapidly ahead, undercutting the mesocyclone and choking off the inflow of buoyant warm air. However, if the descending air is only slightly cooler than the surrounding environment, it successfully transports the mid-level rotation down to the surface without suffocating the storm. It then squeezes the rotation tightly against the ground, intensifying it into a tornado. This delicate temperature balance explains why supercell thunderstorm formation occurs frequently on high-shear days, yet only a very small fraction of those distinct storms become actively tornadic.

Thermodynamic Prerequisites: Why Not Every Supercell Spawns a Tornado

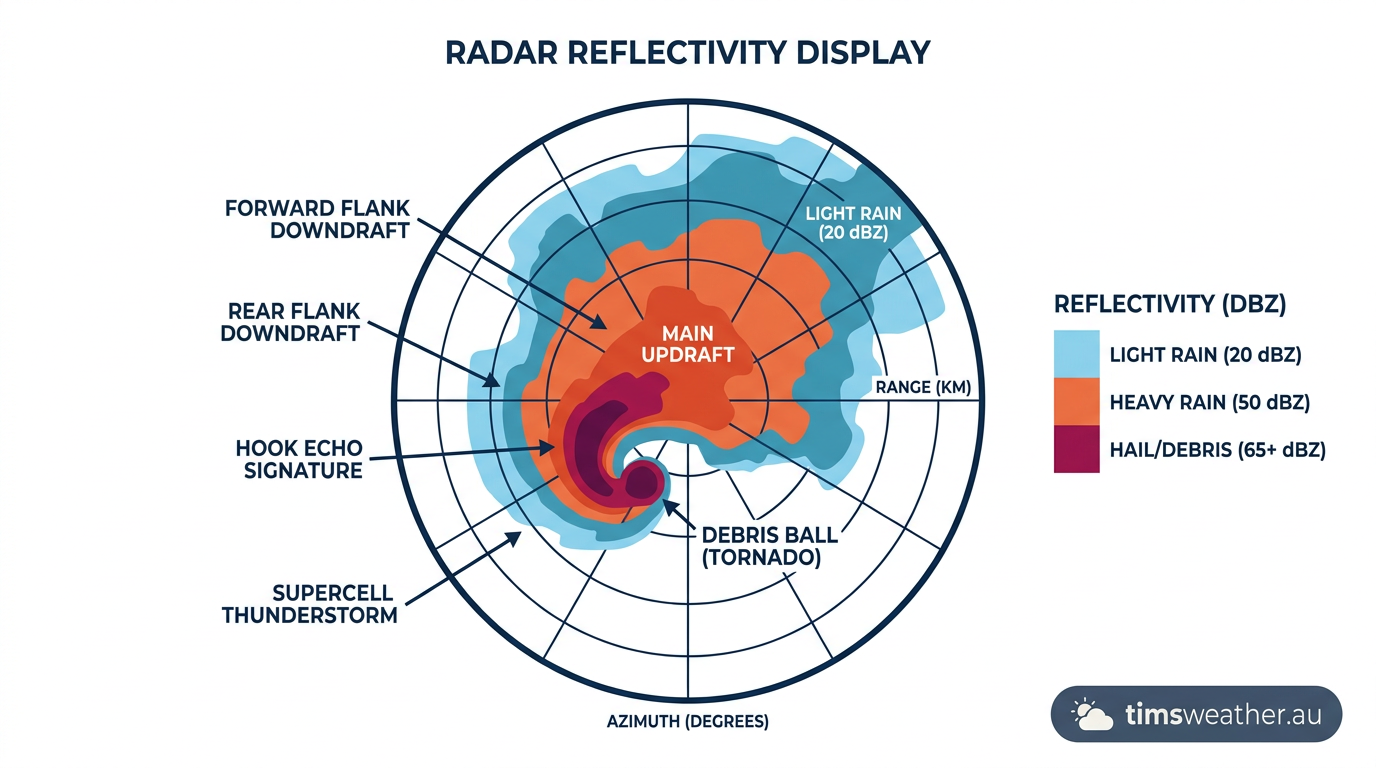

Doppler radar reflectivity image showing a classic hook echo and debris ball signature indicative of a tornado.

Many weather enthusiasts wonder about the specific atmospheric conditions for supercell development required before a tornado can descend. The reality is that the atmosphere demands a perfect, precarious balance of low-level moisture, extreme instability, and directional shear. Without deep instability to drive the updraft, even a highly sheared environment will fail to produce severe weather.

Do all supercells produce tornadoes?

No, the vast majority of supercells do not produce tornadoes. While all supercells possess a rotating mesocyclone, specific low-level thermodynamic conditions must be met for a tornado to actually reach the ground. The rear-flank downdraft must be relatively warm and buoyant; if it is too cold, it cuts off the storm's inflow and prevents a tornado from forming.

Instability and Convective Available Potential Energy

Convective available potential energy, known simply as CAPE, measures the amount of buoyant energy available to a rising parcel of air. High CAPE values, often exceeding 1500 to 2000 Joules per kilogram during severe outbreaks, indicate a highly unstable atmosphere where updrafts can accelerate violently upward. This extreme buoyancy is driven by abundant low-level moisture combining with steep lapse rates, meaning the air cools very rapidly as altitude increases. Without immense CAPE, the updraft cannot stretch the vertical vorticity tightly enough to generate tornadic wind speeds.

The Role of a Capping Inversion

A capping inversion is a layer of warmer air situated just a few kilometres above the surface. This cap acts much like a heavy lid on a boiling pressure cooker. It actively prevents widespread, weak convection from developing early in the day, allowing extreme heat and humidity to build up underneath it near the ground. When late-afternoon surface temperatures finally rise enough to break this inversion, the stored energy releases explosively. This rapid, focused release forces the air upward at extreme velocities, feeding the isolated, intense updrafts required for long-lived supercells.

Analyzing NOAA SPC Soundings and Hodographs

To predict these complex variables, atmospheric scientists rely heavily on daily weather balloon data. By analyzing tools from the NOAA Storm Prediction Center, meteorologists read soundings and hodographs to assess tornadic potential hour by hour. A hodograph is a polar coordinate chart that maps wind vectors at various altitudes. A strongly curved hodograph in the lowest few kilometres indicates high storm-relative helicity, measuring the potential for an updraft to rotate. When high helicity overlaps with immense CAPE, the threat of a violent tornado escalates rapidly. Recognising these data patterns is just as important as knowing how the broader high and low pressure systems Australia experiences guide general synoptic forecasting.

Global and Australian Tornadic Environments

While the Tornado Alley region in the United States records the highest sheer frequency of these events, supercells occur globally wherever the correct atmospheric ingredients align. Incorporating data from the IBTrACS global dataset for climatological context demonstrates that severe convective storms are a regular, dangerous feature across multiple continents, including South America, Europe, and the Australian mainland.

Rotation and the Coriolis Effect in the Southern Hemisphere

One of the most frequent questions regarding global weather patterns is, do Australian supercells rotate clockwise? The answer is firmly yes. Due to the Coriolis Effect, large-scale storm systems in the Southern Hemisphere rotate clockwise. While tornadoes themselves are technically too narrow to be directly governed by the Coriolis force, their parent mesocyclone is large enough to be dictated by it. Because the parent mesocyclone rotates clockwise, the resulting tornadoes almost always rotate clockwise, providing a precise mirror image of their Northern Hemisphere counterparts.

A tornado near Anadarko, Oklahoma, 1999. The funnel is the thin tube reaching from the cloud to the ground. The lower part of this tornado is surrounded by a translucent dust cloud, kicked up by the tornado's strong winds at the surface. The wind of the tornado has a much wider radius than the funnel itself. By Daphne Zaras - http://www.nssl.noaa.gov/headlines/dszpics.htmlOriginally uploaded at en.wikipedia; description page is/was here., Public Domain, https://commons.wikimedia.org/w/index.php?curid=2130165

Storm Seasons and Geographic Triggers

When asking how do tornadoes form in Australia, the underlying mechanics remain identical, but the geographic triggers differ. The Australian storm season peaks sharply from October to March, particularly when driven by ENSO phases like La Niña. This climate phase pushes warmer sea surface temperatures toward the continent, dramatically increasing moisture availability across the eastern states. Local geography also plays a massive role. The Impact of the Great Dividing Range on Localised Wind Shear frequently forces westerly winds aloft to clash violently with warm, moist northeasterly winds feeding inland from the Coral and Tasman Seas.

This geographic convergence frequently occurs along the 'Dry Line' in Southeast Queensland and Northern New South Wales. When intense cold fronts in Australia sweep through and interact with this dry line boundary, they generate the extreme vertical shear required for tornadogenesis. Meteorologists also closely monitor The Role of Low-Level Jets in Australian Tornado Outbreaks, as these ribbons of fast-moving air in the lower atmosphere severely enhance horizontal vorticity ahead of approaching storm systems. When identifying severe thunderstorm warning signs Australia relies on, noting the presence of an incoming East Coast Low or strong low-level jet is a primary step.

Historical events prove the violent potential of these distinct setups. The Kurnell tornado in December 2015 produced localised wind gusts of 213 km/h, causing massive, widespread damage in coastal Sydney. In 2016, a severe atmospheric outbreak in South Australia spawned multiple strong tornadoes that completely decimated high-voltage transmission towers, plunging the entire state into a historic blackout. While older events like the 1985 Brisbane hailstorm are famous primarily for giant hail, they share the exact same supercell mechanics. National Geographic notes that as climate patterns shift, understanding the limits of these environments becomes increasingly vital for public safety, even if the strongest tornadoes recorded in Australia rarely reach the catastrophic top end of the Enhanced Fujita Scale.

Radar Signatures and Supercell Types

Predicting supercell tracks in Queensland, or anywhere globally, relies heavily on advanced Doppler radar technology. Radar allows the Bureau of Meteorology and other global agencies to see inside the heavy precipitation core and track the evolution of the mesocyclone in real-time, often providing the critical minutes needed to issue life-saving warnings.

Supercell types (LP, CL, HP)

Meteorologists classify supercells into three main categories based on their precipitation structure. Low Precipitation (LP) supercells are visually stunning, with a clearly visible updraft base and little rain, but they rarely produce tornadoes. Classic (CL) supercells feature the traditional flying-eagle radar structure and are responsible for the vast majority of significant tornadoes. High Precipitation (HP) supercells are incredibly dangerous because intense, heavy rain and hail wrap entirely around the mesocyclone, completely obscuring any tornado from visual spotters and making them highly treacherous for affected communities.

Radar Signatures: Identifying the Hook Echo and Debris Ball

When monitoring a Radar Loop, the most infamous visual indicator of a tornadic supercell is the hook echo. This distinct signature forms when the rear-flank downdraft drags heavy precipitation around the back side of the rotating updraft, carving out a sharp hook shape on the reflectivity display. In extreme, destructive cases, a debris ball may appear at the very tip of the hook. This highly reflective, circular radar return indicates that a tornado is actively lofting structural materials, vegetation, and dirt high into the air, confirming to forecasters that a violent event is actively hitting the ground.

Comparison of Supercell vs. Non-Supercell Tornadoes

While supercells produce the largest and most violent tornadoes, weak rotational events can occasionally occur without a mesocyclone. Spotters learn to distinguish the various types of clouds in Australia to identify wall clouds associated with supercells, separating them from the brief, localised spin-ups found along weaker storm boundaries.

What is the difference between a landspout and a supercell tornado?

The difference between supercells and landspouts lies in their formation process. A supercell tornado forms from the top down, originating from a deep, rotating mesocyclone that descends to the surface. A landspout forms from the ground up when a rapidly growing thunderstorm updraft stretches pre-existing, non-supercell rotation along a surface boundary, creating a weaker, narrower vortex.

Frequently Asked Questions

What makes a supercell thunderstorm form a tornado?

A tornado forms when a supercell’s rotating updraft, or mesocyclone, tightens and intensifies near the ground. Strong vertical wind shear creates initial horizontal spin, which the updraft tilts upright and stretches. The rear-flank downdraft then helps transport this rotation towards the surface, focusing it into a violent, narrow column.

Why does a capping inversion matter for supercells?

A capping inversion is a layer of warm air aloft that prevents smaller clouds from rising. This allows heat and moisture to build up at ground level like a pressure cooker. When the cap finally breaks, the stored energy is released explosively, generating the massive, sustained updrafts necessary for supercells.

Can a supercell form without a tornado?

Yes, the vast majority of supercells form without ever producing a tornado. While all supercells feature a rotating mesocyclone, specific low-level conditions, such as the correct balance of temperature and humidity in the rear-flank downdraft, must be perfectly met for a tornado to reach the ground.
